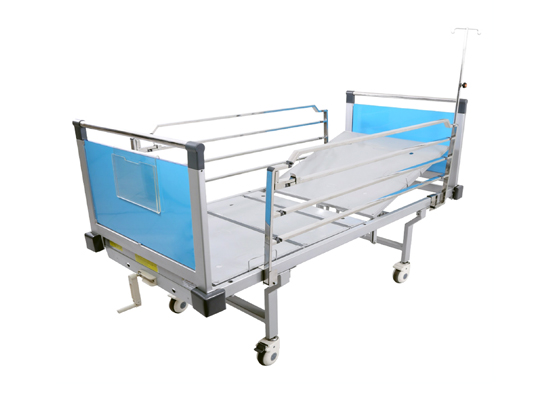

Features
• Construction: Made of 30mm x 60mm and 30mm x 30mm steel pipe
• Crank Mechanism : Ergonomic back rest design with retraction up to 110 mm and elevation up to 75°
• Mattress Platform : Made of steel sheet with hollow steel pipe safety frame
• Head & Foot Panel : Made of high pressure Laminate (HPL), detachable
• Safety Side Rail : Made of stainless steel, collapsible
• Automatic locking and unlocking system with one touch folding
• Castor : Four 5” castors, 360° swivel, with 2 brakes
• IV Stand : Made of stainless steel pipe (with two hanger hooks), 6 optional locations
• Painting : Powder Coating
• Accessories :
– Name tag (acrylic), Urinal bag hanger (stainless steel
– Mattress (superfoam 2000 x 840 x 120 mm)
• Maximum Safe Working Load : 250 kgs
• OPTIONAL :
– Upgradeable to Hospital Bed 1 Axis Electric
– Upgradeable to Hospital Bed 2 crank and Hospital Bed 2 axis
– Upgradeable to Hospital Bed 3 crank and Hospital Bed 3 axis electric (by replacing the lower deck)
Specification
Overall Dimension : 2160mm x 980mm x 635mm
