SKU APF5020

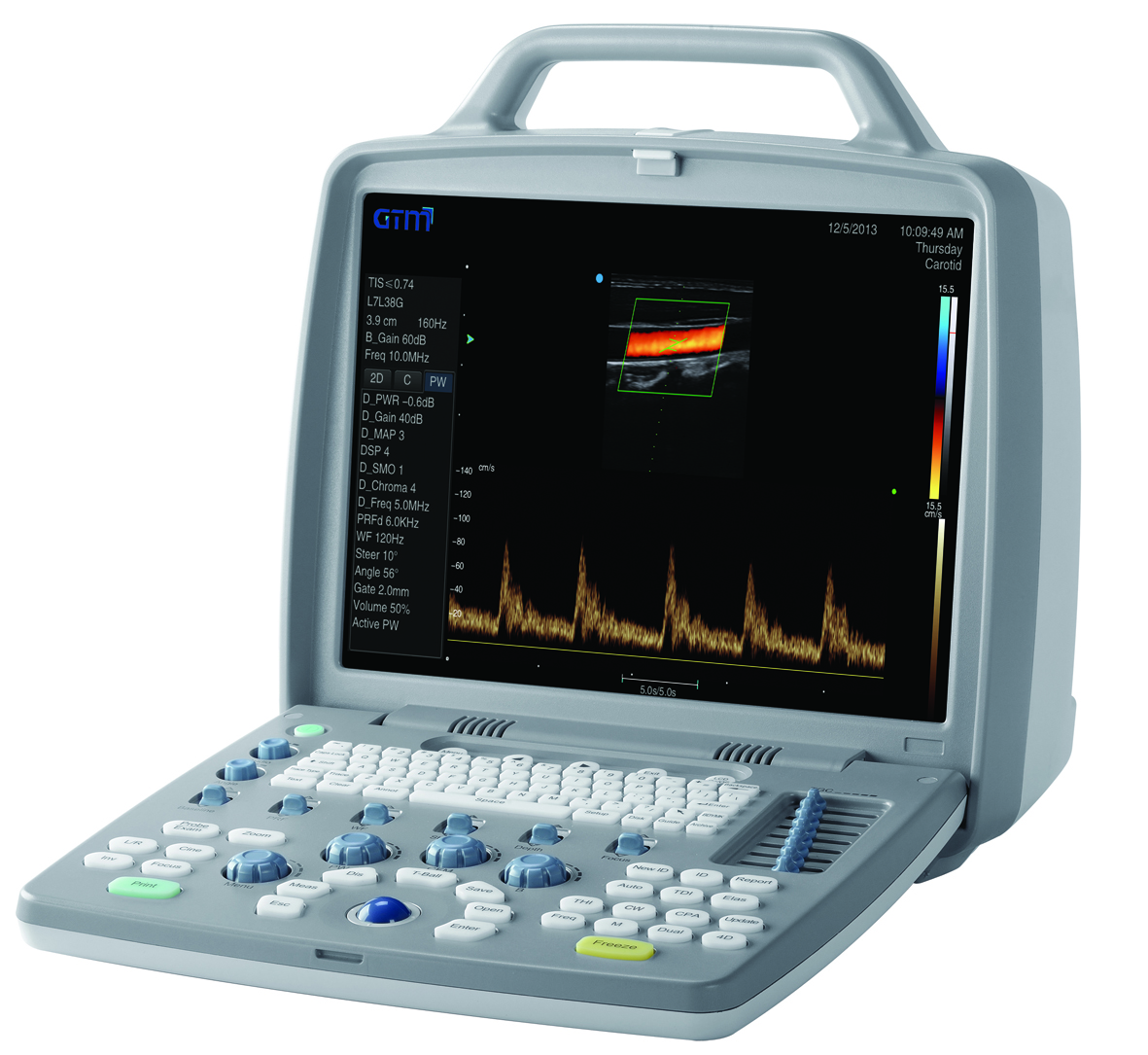

APF Digital Ultrasound Imaging System

Specifications :
Ergonomic design
≥15” LCD monitor
Visual Angle:
– Left and right: 160°
– Up and down: 160°
– Resolution: = ≥1024 × 768
Backlit keyboard, 8 TGC
Transparent keyboard membrane for minor language
Two active probe connectors
Two probe holders
Built-in lithium battery
– Working hour: = ≥ 60 min
– Charging time: = ≥ about 4 hours

Dimension : 370 mm (H) x 214 mm (W) x 387 mm (D)
Net weight : 10,93 kg
Power requirements : 19VDC
Rated Power : 180Watt
Probe : – Linear Probe
– Convex Probe
– 4D Convex Probe
– Transvaginal Probe
– Phased Array Probe
Accessories :
– Potential Equalization Conductor
– BNC/RCA Cable
– Print Control Cable
– Dust Proof Cover
